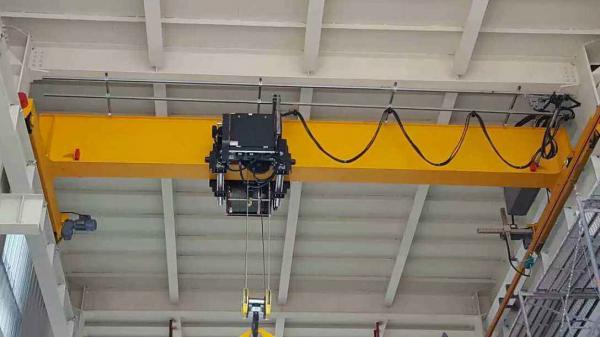

歐式電動單梁起重機

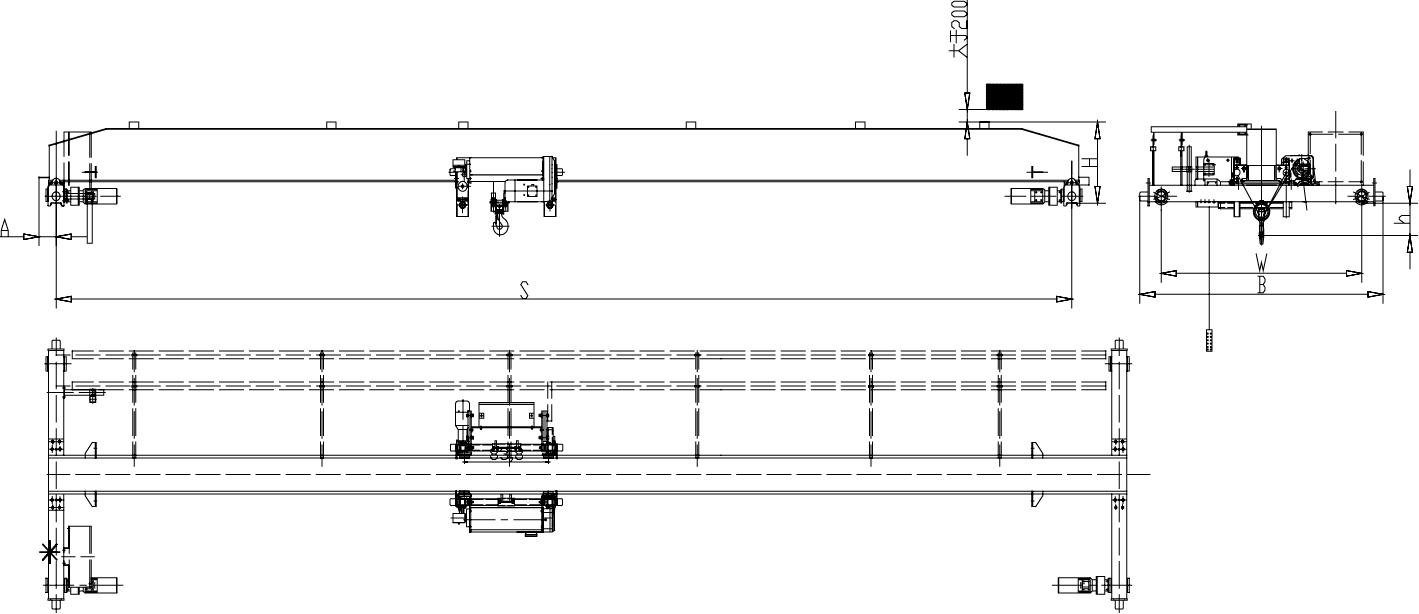

　　S—起重機跨度 Crane span

　　H—起重機運行軌道頂部距起重機高點的距離 The distance from the crane travel rail top to the crane highest point.

　　h—起重機吊鉤升到高點時距起重機運行軌道頂部的距離 The distance to the crane travel rail top when the hook moves to the top point.

　　A—大車軌道中心到端梁外側的距離 The distance from the crane rail center to the end girder outside.

　　W—大車端梁輪距 Crane end girder wheel distance.

　　B—大車端梁（含緩沖器）的長度 The length of the crane end girder including the buffer.

　　注notes：

　　1、大車運行標準速度為2-20m/min（變頻調速）；

　　The standard travelling speed of crane is 3-30m/min (frequency conversion)

　　小車運行標準速度為2-20m/min（變頻調速）；

　　The standard travelling speed of trolley is 2-20m/min (frequency conversion)

　　2、除了標準起升速度外，還有多種速度可供選擇，也可選用變頻控制起升。

　　There are many optional speed levels and frequency control lifting except the standard speed.

　　3、控制方式有多種：地操操作、遙控器操作及兩者的組合。

　　Control methods: ground control, remote control and the combination control of the two.

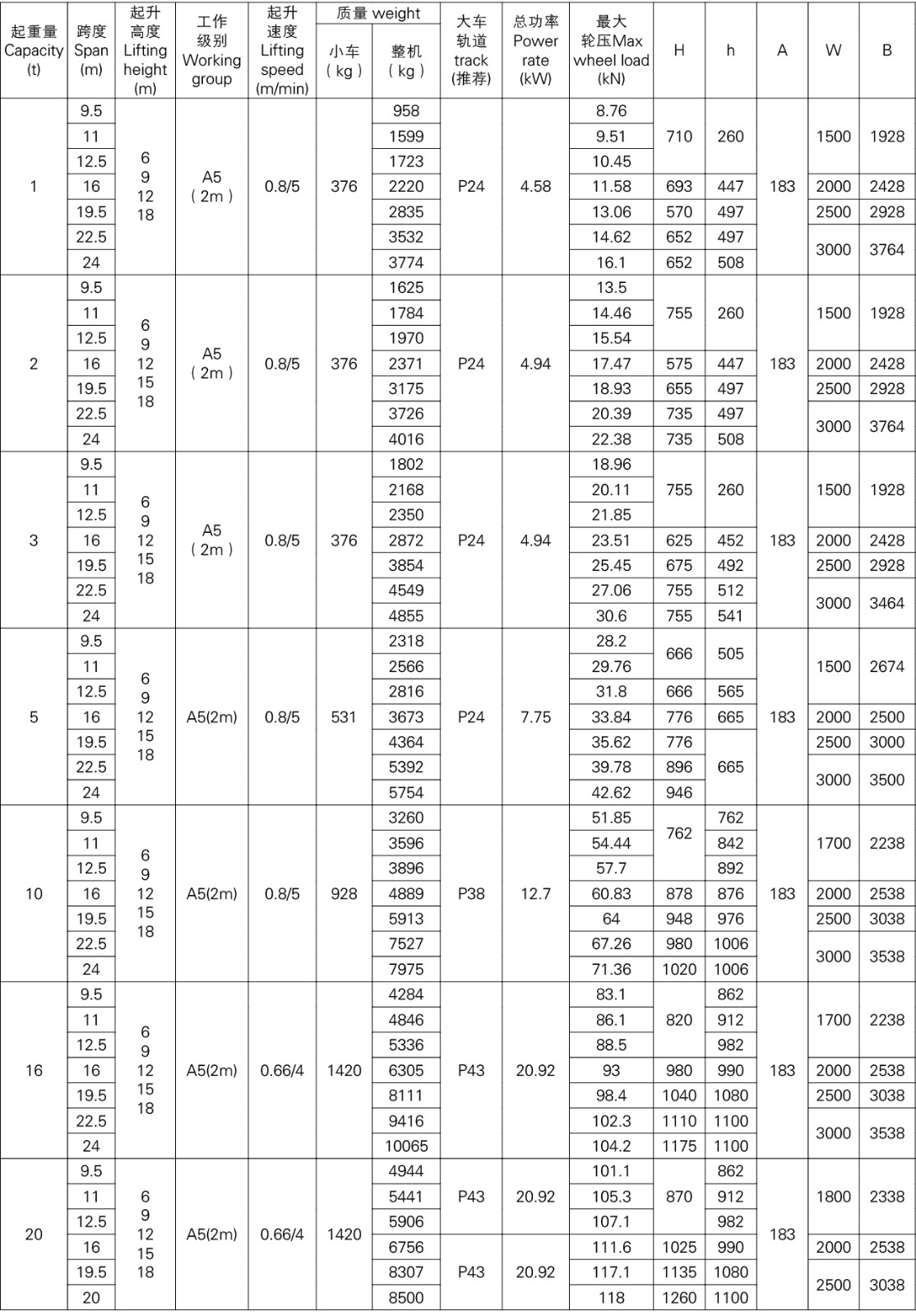

　　4、表格中數據僅供參考，如有變更，恕不另作通知。

　　The data listed in the form is only for reference. Please forgive the non-informing if the date changed.

　　5、具體事宜或其它請求請與我公司協商。

　　Please contact us for more details and special requirements.
