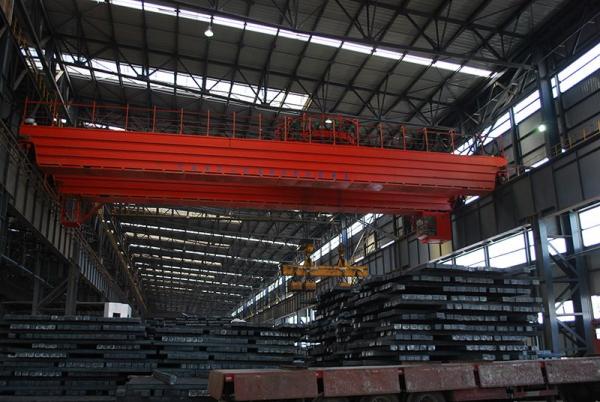

本起重機帶有可旋轉掛梁，適用于鋼廠、堆場和倉儲等室內或露天的固定跨間，裝卸及搬運鋼板、型鋼、盤卷等物料。**適用于吊運不同規格且需水平旋轉的場合。掛梁下可以攜帶電磁吸盤、夾鉗等專*吊具。

　　The crane has slewing carrier-beam；is applicable to the fixed span at indoors or outdoors of stee1mil1．yard and storage，etc．It is used for loading，unloading  and carrying stee1 plate，profile steel，and spool，etc．It is especially applicable to lift materia1 of different peifications and which needs horizontal rotation．The lower part of the carriler—beam can bring special lifting appliances,such as magnetic chuck and tongs，etc．

　　注：

　　1、進入司機室的走臺方式分為：端入、側入、頂入。

　　2、起重量包含掛梁及專*吊具自重；

　　3、掛梁大旋轉角度可按用戶要求；

　　4、以上數據為室內使用時；

　　5、參數表中起重機總功率為行車本體功率，不含專*吊具功率。

　　Note：

　　1．The modes entering cab：form the end：form the side；form the top。

　　2．The lifting  weight includes deadweight of the carrier—beam and special lifting applicnces；

　　3．The max.rotating angle of the carrier—beam can be made as the user asks；

　　4．All above-mentioned data is for being used indoors；

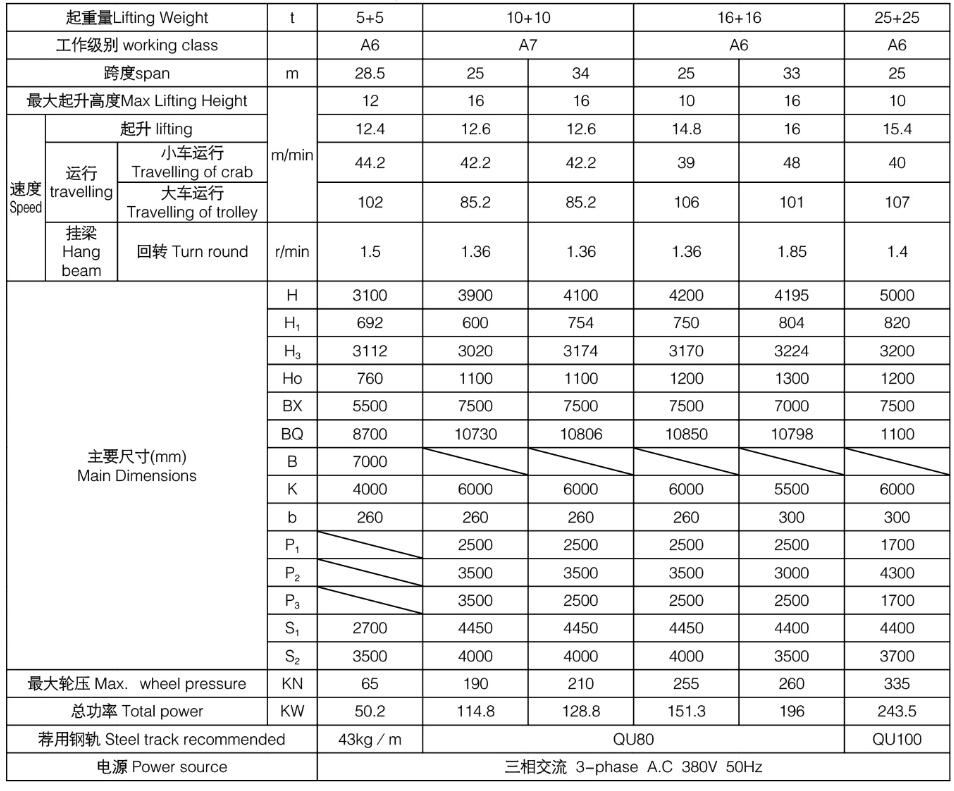

　　5. The total power of the crane in the parameter list is the power of the travelling crane，but excludes

　　the power ofspecial lifting appliances.
