1、進入司機室的走臺入口方式分為:端入、側(cè)入、頂入。
2、起重量包括掛梁重量。
3、起重機總重不包括掛梁重量。

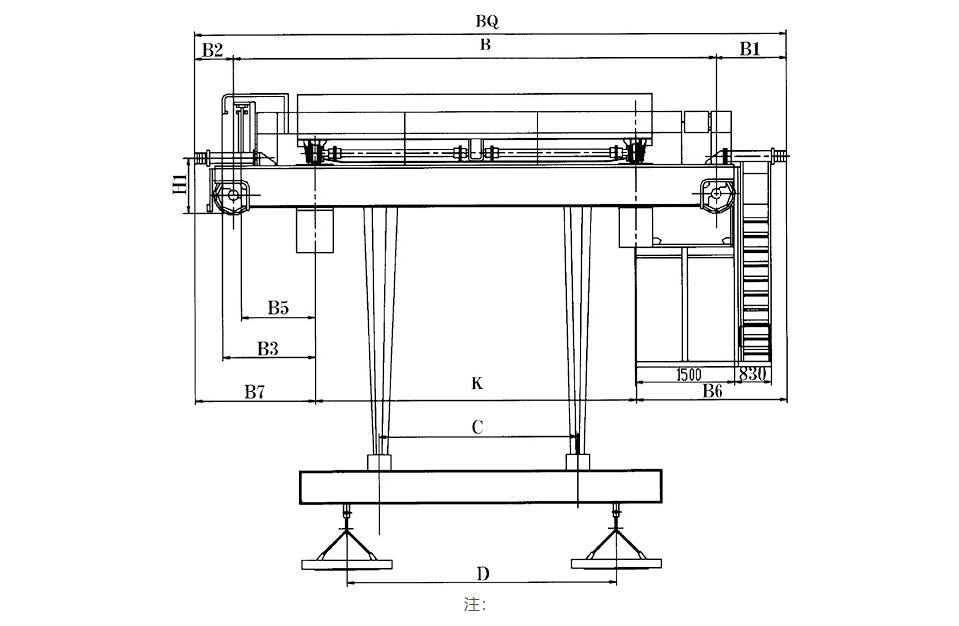

4、掛梁上下吊點距C、D可根據(jù)用戶要求確定,表中尺寸僅供參考。
Note:
1.The direction of platform door to the driver,s cap is side,end and top.
2.The lifting capacity includes the weight of the carrier-beam.
3.The total weight does’t include the weight of the carrier-beam.
4.The value of C and D are depended on the requirements
